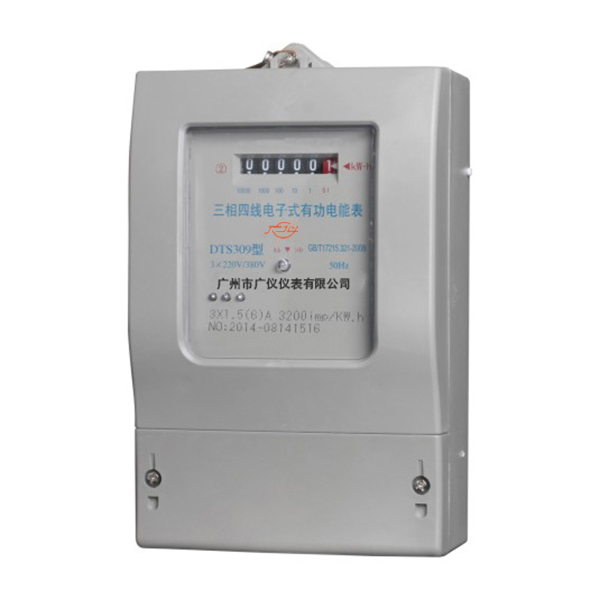

DTS309 electronic three-phase four-wire active energy meter is electronic 1.0 and 2.0 active energy meter, used to measure the reference frequency 50HZ AC circuit in the three-phase active energy, all in line with national standards GB / T17215.321-2008, It is characterized by:
1, two-way metering accurate measurement of the power of positive and negative direction, long-term work does not need to adjust, and in a direction cumulative power, and a tampering function.
2, three-phase power supply, one phase or two-phase power, measurement accuracy is not affected;
3, the use of optical isolation technology output pulse signal energy, light-emitting diodes indicate electricity, with the lack of phase display function.
|
Model and name |
Precision |
Reference voltage |
Calibration current |
Wiring |
Packing size (mm) |
Quantity (only) |
|
DTS309 Electronic three-phase four-wire Meter (Counter display) |
2.0 |
3× 220/380 |
1.5(6) |
Mutual inductance |
505×260×255 |
10 |
|
5(20),10(40)15(60) 20(80)，30(100) |
Direct type |
505×260×255 |
||||
|
DTS309 Electronic three-phase four-wire Meter (Counter display) |
1.0 2.0 |
1.5(6) |
Mutual inductance |
505×260×255 |
||
|
5(20),10(40)15(60) 20(80)，30(100) |
Direct type |
505×260×255 |
||||
|
DTS309 Electronic three-phase four-wire Meter (LCD) |
1.5(6) |
Mutual inductance |
490×352×269 |
|||
|
5(20)，10(40) 15(60)，20(80) |
Direct type |
490×352×269 |
||||
|
DTS309 Electronic three-phase four-wire Meter (With RS845 interface) |
1.5(6) |
Mutual inductance |
490×352×269 |
|||
|
5(20)，10(40) 15(60)，20(80) |
Direct type |
490×352×269 |
