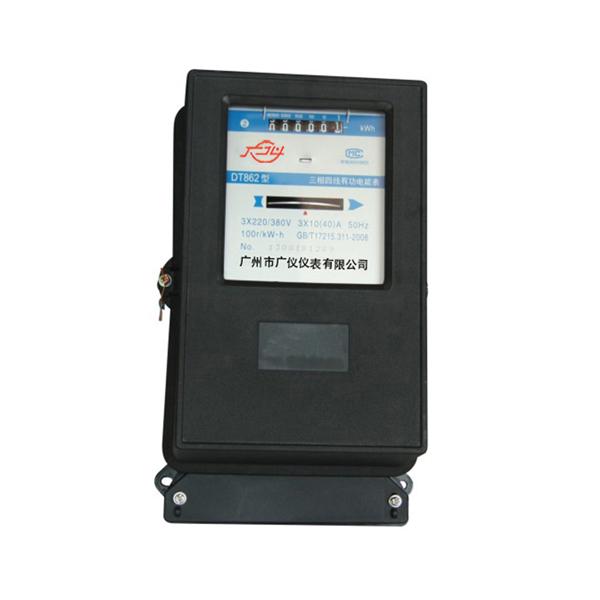

D □ 862 Series Watt-hour Meter Induction-type energy meter, reference frequency 50HZ, for the measurement of three-phase three-wire and three-phase four-wire system of active and reactive power.
The temperature is -10 ℃ ~ + 50 ℃ (1.0 ℃ and 0 ℃ ~ 40 ℃), the relative temperature does not exceed 85%, and in the air does not contain corrosive gases and Avoid dust, mold, insects and other effects.
Embedded watt-hour meter for fixed embedded in the switch board used.
|
Model and name |
Precision (level) |
Reference voltage (V) |
Calibration current (A) |
Wiring |
Packing size (mm) |
Quantity (only) |
|
|
DT864 three-phase four Line active energy meter |
1.0 |
3×220/380 |
3×1.5(6)；3×3(6) |
Mutual inductance |
470×410×330 |
6 |
|
|
DT862 three-phase four Line active energy meter |
2.0 |
3×220/380 |
3×1.5(6)；3×3(6) |
Mutual inductance |
470×410×330 |
6 |
|
|
3×5(20);3×10(40) |
Direct type |
||||||
|
3×15(60)；3×20(80) 3×30(100) |
470×410×330 |
6 |
|||||
|
DS862 three-phase three Line active energy meter |
2. |
3×100 |
3×1.5(6)；3×3(6) |
Mutual inductance |
|||
|
3×380 |
3×5(20);3×10(40) |
Direct type |
440×360×330 |
6 |
|||
|
3×15(60)；3×20(80) 3×30(100) |
|||||||
|
Three - phase three - wire reactive energy meter |
DX862-2/4 |
3.0 |
3×380 3×100 |
3×1.5(6);3×3(6) |
Mutual inductance |
70×410×330 |
6 |
|
DX864-2/4 |
2.0 |
||||||
|
Three - phase three - wire reactive energy meter |
DX865-2/4 |
3.0 |
3×380 3×100 |
3×3(6);3×1.5(6) |
Mutual inductance |
70×410×330 |
6 |
|
DX863-2/4 |
2.0 |
||||||
|
Three - phase four - wire embedded energy meter |
DT862-2/4K |
2.0 |
3×220/380 |
3×1.5(6);3×3(6) |
Mutual inductance |
90×265×290 |
2 |
|
DT864-2/4K |
1.0 |
||||||
|
Three - phase four - wire reactive power meter |
DX862-2/4K |
3.0 |
3×380 3×100 |
3×1.5(6);3×3(6) |
Mutual inductance |
90×265×290 |
2 |
|
DX864-2/4K |
2.0 |
||||||
|
Three - phase three - wire embedded energy meter |
DS862-2/4K |
2.0 |
3×380 3×100 |
3×1.5(6);3×3(6) |
Mutual inductance |
90×265×290 |
2 |
|
DS864-2/4K |
1.0 |
||||||
|
Three - phase three - wire reactive power meter |
DX865-2/4K |
3.0 |
3×380 3×100 |
3×1.5(6);3×3(6) |
Mutual inductance |
90×265×290 |
2 |
|
DX863-2/4K |
2.0 |
||||||
